Basic Usage of GetFEM++ΒΆ

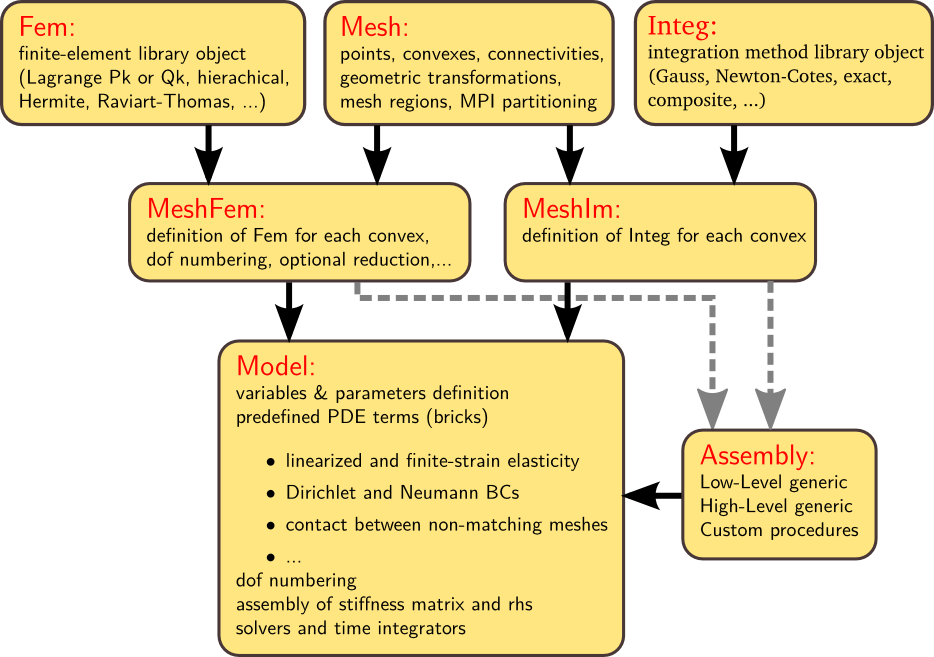

A GetFEM++ structure can be summarized as follows

../_images/getfem_structure1.png

A program using getfem will often have the following structure

... define one or more Mesh

... define one or more MeshFem

... define one or more MeshIm

... define a Model and set it up:

    Model.add_fem_variable(MeshFem, "some variable name")

    Model.add_fem_variable(MeshFem, "another variable name")

    Model.add_fem_data(MeshFem, "some data name")

    Model.add_nonlinear_generic_assembly_brick(MeshIm,
                            "copy & paste your PDE weak formulation here", MeshRegion)

    Model.solve(...options)

Note that instead of defining your pde terms with the high generic assembly language (see Compute arbitrary terms - high-level generic assembly procedures for more details on the syntaxt of the high-level generic assembly language), you can use predefined bricks for standard terms : generic eliptic term, linearized or finite strain elasticity, standard boundary conditions ...
