Example of wheel in contact (Assembly between two meshes, transformations, use of fixed size variables)

In this example of a deformable ‘’wheel’’ enters in contact with a deformable foundation. We use here python interface, translate this program for another interface or in C++ is easy (see the previous example). The complete program demo_wheel_contact.py can be found in the directory interface/tests/python.

The problem setting

Let \Omega^1 \subset \R^2 be the reference configuration of a 2D wheel and \Omega^2 \subset \R^2 the reference configuration of a deformable foundation. We consider small deformation of these two bodies (linearized elasticity) and the contact between them. We also consider that the rim of the wheel is rigid and apply a vertical force on the wheel.

Building the program

Let us begin by loading Getfem and fixing the parameters of the problem

import getfem as gf
import numpy as np

E = 21E6                         # Young Modulus (N/cm^2)
nu = 0.3                         # Poisson ratio
clambda = E*nu/((1+nu)*(1-2*nu)) # First Lame coefficient (N/cm^2)
cmu = E/(2*(1+nu))               # Second Lame coefficient (N/cm^2)
clambdastar = 2*clambda*cmu/(clambda+2*cmu) # Lame coefficient for Plane stress (N/cm^2)
applied_force = 1E7              # Force at the hole boundary (N)

h = 1                      # Approximate mesh size
elements_degree = 2        # Degree of the finite element methods
gamma0 = 1./E;             # Augmentation parameter for the augmented Lagrangian

Mesh generation

We consider that the radius of the wheel is 15cm and the one of the rim 8cm and that the wheel lies on a deformable foundation of thickness 10cm. We generate the mesh of the wheel using the experimental mesher of GetFEM++. Concerning the mesh of the foundation, we build a structured mesh (see the documentation of the Mesh object in the python interface).

mo1 = gf.MesherObject('ball', [0., 15.], 15.)
mo2 = gf.MesherObject('ball', [0., 15.], 8.)
mo3 = gf.MesherObject('set minus', mo1, mo2)
gf.util('trace level', 2)   # No trace for mesh generation
mesh1 = gf.Mesh('generate', mo3, h, 2)

mesh2 = gf.Mesh('import','structured','GT="GT_PK(2,1)";SIZES=[30,10];NOISED=0;NSUBDIV=[%d,%d];' % (int(30/h)+1, int(10/h)+1));
mesh2.translate([-15.,-10.])

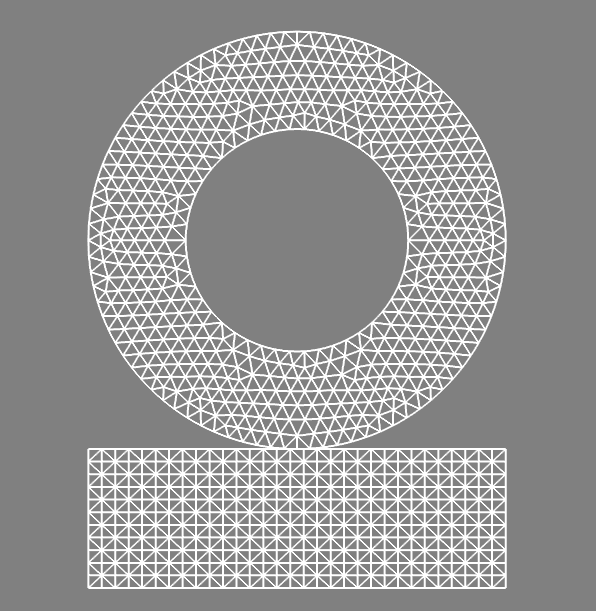

The result is the following

../_images/wheel_mesh.png

Boundary selection

We have to select the different parts of the boundary where we will set some boundary conditions, namely the boundary of the rim (in order to apply a force and the fact that the rim is rigid), the contact boundary of the wheel and the bottom boundary of the foundation that we will assume clamped.

fb1 = mesh1.outer_faces_in_box([-8.1, 6.9], [8.1, 23.1])     # Boundary of the hole
fb2 = mesh1.outer_faces_with_direction([0., -1.], np.pi/4.5) # Contact boundary of the wheel
fb3 = mesh2.outer_faces_with_direction([0., -1.], 0.01)      # Bottom boundary of the foundation

HOLE_BOUND=1; CONTACT_BOUND=2; BOTTOM_BOUND=3;

mesh1.set_region(HOLE_BOUND, fb1)
mesh1.set_region(CONTACT_BOUND, fb2)
mesh1.region_subtract(CONTACT_BOUND, HOLE_BOUND)
mesh2.set_region(BOTTOM_BOUND, fb3)

Note that the command mesh1.outer_faces_with_direction([0., -1.], n.pi/4) allows to select all the faces having a unit outward normal having an angle less or equal to n.pi/4 with the vector [0., -1.]. The command mesh1.region_subtract(CONTACT_BOUND, HOLE_BOUND) allow to delete the faces corresponding to the rim in the contact boundary.

Definition of finite elements methods and integration method

We define mfu1, mfu2 two finite element methods which will approximate the displacements in the wheel and the foundation respectively. mflambda is finite element method to approximate a multiplier to take into account the rigidity of the rim, mflambda_C is to approximate the contact multiplier (contact pressure) and mfvm1, mfvm2 will be used to interpolate the Von Mises stresses of the wheel and the foundation for post-processing. mim1, mim2 are two integration methods on the wheel and the foundation.

mfu1 = gf.MeshFem(mesh1, 2)
mfu1.set_classical_fem(elements_degree)
mflambda = gf.MeshFem(mesh1, 2)
mflambda.set_classical_fem(elements_degree-1)
mflambda_C = gf.MeshFem(mesh1, 1)
mflambda_C.set_classical_fem(elements_degree-1)
mfu2 = gf.MeshFem(mesh2, 2)
mfu2.set_classical_fem(elements_degree)
mfvm1 = gf.MeshFem(mesh1, 1)
mfvm1.set_classical_discontinuous_fem(elements_degree)
mfvm2 = gf.MeshFem(mesh2, 1)
mfvm2.set_classical_discontinuous_fem(elements_degree)
mim1 = gf.MeshIm(mesh1, pow(elements_degree,2))
mim2 = gf.MeshIm(mesh2, pow(elements_degree,2))

Model definition

We use a real model and declare the two variables which will represent the displacements:

md=gf.Model('real');
md.add_fem_variable('u1', mfu1)       # Displacement of the structure 1
md.add_fem_variable('u2', mfu2)       # Displacement of the structure 2

Linearized elasticity bricks

We add the Lamé coefficients as data of the model and add a linearized elasticity brick for the wheel and the foundation:

md.add_initialized_data('cmu', [cmu])
md.add_initialized_data('clambdastar', [clambdastar])
md.add_isotropic_linearized_elasticity_brick(mim1, 'u1', 'clambdastar', 'cmu')
md.add_isotropic_linearized_elasticity_brick(mim2, 'u2', 'clambdastar', 'cmu')

Clamped condition at the bottom of the foundation

We prescribed the displacement at bottom face of the foundation to vanish, for instance with a multiplier with the add of the following brick:

md.add_Dirichlet_condition_with_multipliers(mim2, 'u2', elements_degree-1, BOTTOM_BOUND)

Contact condition (use of interpolate transformations)

Now, let us see how to prescribed the contact condition between the two structures. It is possible to use predefined bricks (see Small sliding contact with friction bricks for small deformation/small sliding contact and Large sliding/large deformation contact with friction bricks for large deformation/large sliding contact). However, we will see here how to directly prescribe a contact condition using an augmented Lagrangian formulation and the interpolate transformations.

For small deformation contact, the correspondence between points of one contact surface to the other have to be described on the reference configuration and is not evolving, which is of course simpler but is an approximation.

We consider that the contact boundary of the wheel is the slave one and we have to describe the transformation from the contact boundary of the wheel to the contact boundary of the foundation. This is quite simple here, since the contact boundary of the foundation corresponds to a vanishing vertical coordinate. So we define the transformation

X \longmapsto (X(1), 0)

where X is the vector of coordinates of the point. We add this transformation to the model with the command

md.add_interpolate_transformation_from_expression('Proj1', mesh1, mesh2, '[X(1);0]')

As a consequence, it will be possible to use this transformation, from the mesh of the wheel to the mesh of the foundation, into generic assembly expressions. Notes that this is here a very simple constant expression. More complex expressions depending on the data or even the variables of the model can be used. If the expression of a transformation depends on the variable of the model, the tangent linear system will automatically takes into account this dependence (see Interpolate transformations for more details. Note also that transformation corresponding to a large sliding contact and automatically searching for the correspondence between contact boundaries exist in GetFEM++ (see Integral contact brick with raytrace).

Using the defined transformation, we can write an integral contact condition using an augmented Lagrangian formulation (see Small sliding contact with friction bricks for more details). The corresponding term (to be added to the rest of the weak formulation) reads:

& \cdots + \ds \int_{\Gamma_c} \lambda_N(X) (\delta_{u^1}(X)-\delta_{u^2}(\Pi(X)))\cdot n d\Gamma \\
& -  \ds \int_{\Gamma_c} \left(\lambda_N(X) + \left(\lambda_N(X) + \Frac{1}{h_T\gamma_0}((X + u^1(X))\cdot n - (\Pi(X) - u^2(\Pi(X)))\cdot n\right)_-\right)\delta_{\lambda_N}(X) d\Gamma = 0 ~~~~ \forall \delta_{\lambda_N}, \forall \delta_{u^1}, \forall \delta_{u^2},

where \Gamma_c is the slave contact boundary, \lambda_N is the contact multiplier (contact pressure), h_T is the radius of the element, \Pi is the transformation, n is the outward normal vector to the master contact boundary (here n = (0,1)), \gamma_0 is an augmentation parameter, (\cdot)_-:I\hspace{-0.2em}R\rightarrow I\hspace{-0.2em}R_+ is the negative part and \delta_{\lambda_N}, \delta_{u^1}, \delta_{u^2} are the test functions corresponding to \lambda_N, u^1, u^2, respectively.

Using the high-level generic assembly bricks, the contact condition can be added by:

md.add_initialized_data('gamma0', [gamma0])
md.add_filtered_fem_variable('lambda1', mflambda_C, CONTACT_BOUND)
md.add_nonlinear_generic_assembly_brick(mim1, 'lambda1*(Test_u1.[0;1])'
                    '-lambda1*(Interpolate(Test_u2,Proj1).[0;1])', CONTACT_BOUND)
md.add_nonlinear_generic_assembly_brick(mim1, '-(gamma0*element_size)'
          '*(lambda1 + neg_part(lambda1+(1/(gamma0*element_size))'
          '*((u1-Interpolate(u2,Proj1)+X-Interpolate(X,Proj1)).[0;1])))*Test_lambda1', CONTACT_BOUND);

Prescribing the rigidity of the rim and the vertical force

We have now to prescribe the rigidity of the rim. This is a non-standard condition, since we do not know a priori what will be the vertical displacement of the rim. We can use an additional unknown for that vertical displacement. We add an additional fixed size variable alpha_D (which mean that it does not a finite element field) of size 1 with

md.add_variable('alpha_D', 1)

We need a multiplier to prescribe the displacement on the rim boundary:

md.add_filtered_fem_variable('lambda_D', mflambda, HOLE_BOUND)

This multiplier represents the boundary stress that is necessary to prescribe the vertical displacement to be :math`(0, -alpha_D)`. The constraint we want to apply on this multiplier is that its integral over the rim boundary is the vertical force we want to apply. The corresponding weak formulation term to be added to the rest of the weak formulation reads

\cdots + \int_{\Gamma_D} -\lambda_D.\delta_{u^1} + ((0, \alpha_D) - u^1).\delta_{\lambda_D} + (\lambda_D.(0,1) + F)\delta_{\alpha_D} d\Gamma = 0,

where \Gamma_D is the rim boundary, F is the applied density of force.

This could be added to the model with the generic assembly brick:

md.add_filtered_fem_variable('lambda_D', mflambda, HOLE_BOUND)
md.add_initialized_data('F', [applied_force/(8*2*np.pi)])
md.add_linear_generic_assembly_brick(mim1, '-lambda_D.Test_u1 + (alpha_D*[0;1]-u1).Test_lambda_D'
      ' + (lambda_D.[0;1]+F)*Test_alpha_D', HOLE_BOUND)

For more robustness, a small penalization on alpha_D can be added

md.add_linear_generic_assembly_brick(mim1, '1E-6*alpha_D*Test_alpha_D');

Note that the fixed size variable alpha_D is linked to each points of the rim boundary. This means that the line of the tangent matrix corresponding to alpha_D may have a lot of nonzero components. This is why such a use of fixed size variable have to be done with care.

Model solve

We can now solve our problem with:

md.solve('max_res', 1E-9, 'max_iter', 100, 'noisy')

Note that in some configuration, it is preferable to use a more basic line search than the default one:

md.solve('max_res', 1E-9, 'max_iter', 100, 'noisy', 'lsearch', 'simplest',  'alpha min', 0.8)

Export the solution

Now the code to export the solution with the VonMiss stress:

U1 = md.variable('u1')
U2 = md.variable('u2')
VM1 = md.compute_isotropic_linearized_Von_Mises_or_Tresca('u1', 'clambdastar', 'cmu', mfvm1)
VM2 = md.compute_isotropic_linearized_Von_Mises_or_Tresca('u2', 'clambdastar', 'cmu', mfvm2)

mfvm1.export_to_vtk('displacement_with_von_mises1.vtk', mfvm1,  VM1, 'Von Mises Stresses',
                     mfu1, U1, 'Displacements')

mfvm2.export_to_vtk('displacement_with_von_mises2.vtk', mfvm2,  VM2, 'Von Mises Stresses',
                    mfu2, U2, 'Displacements')
# You can view solutions with for instance:
# mayavi2 -d displacement_with_von_mises1.vtk -f WarpVector -m Surface -d displacement_with_von_mises2.vtk -f WarpVector -m Surface
../_images/wheel.png

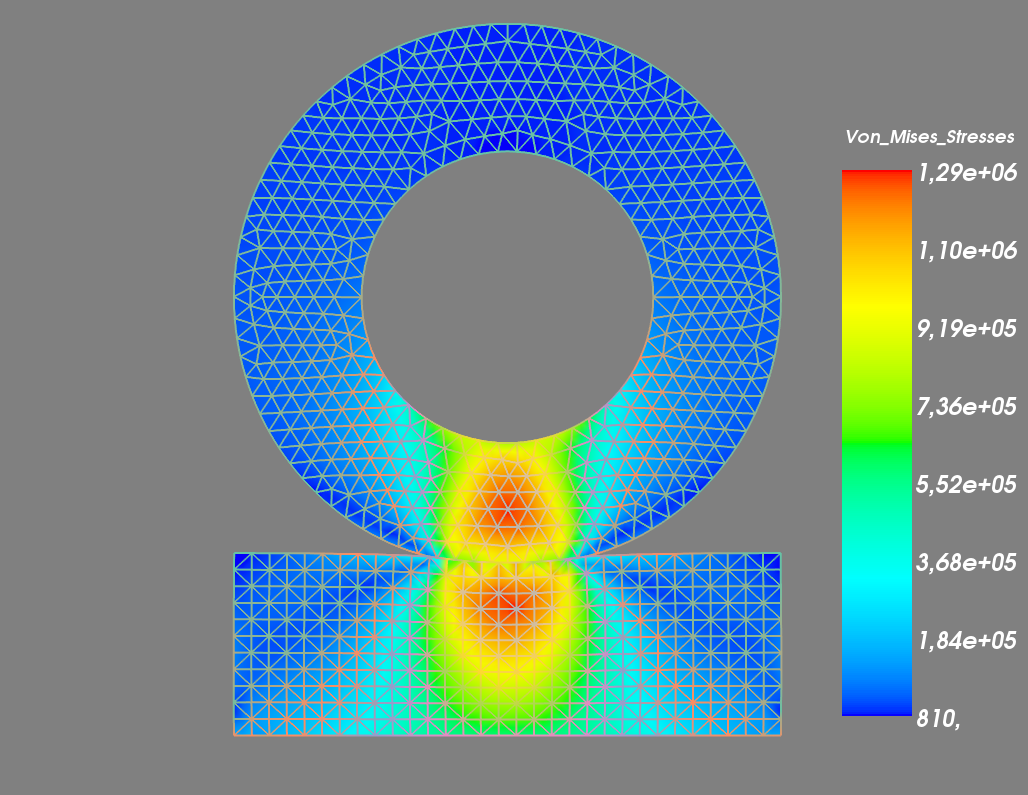

Plot of the solution.
